Corrugated hoses are thin-walled, cylindrical components with a corrugated structure in their lateral area. The type of corrugation differentiates annularly corrugated hoses and coil corrugated hoses.

Stripwound hoses are produced in a continuous process by profiling and helical coiling of a cold-rolled metal strip on a mandrel.

Product Overview Corrugated Hoses stainless steel Witzenmann

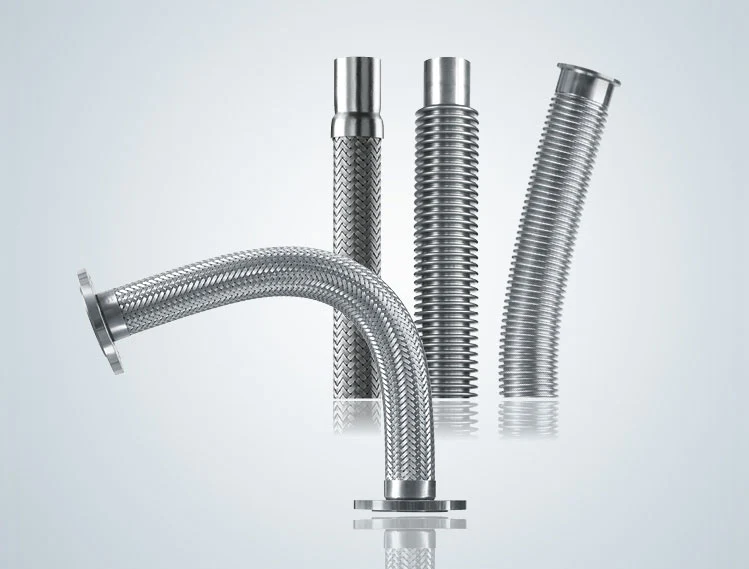

HYDRA® Corrugated Hoses

Corrugated hoses are manufactured from various materials with a corrugated profile.

standard dimensions from DN 6 to DN 300
for temperatures from -270 °C to max. 600 °C
pressure resistant and leakproof
with PTFE lining for highly aggressive media
various connection fittings available

Learn more about Corrugated Hoses

Product Overview Stripwound Hoses stainless steel Witzenmann

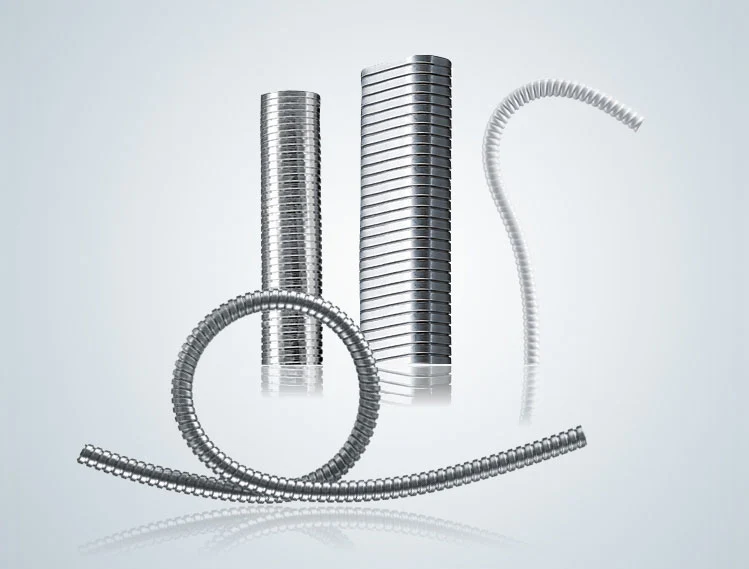

HYDRA® Stripwound Hoses

Stripwound hoses are manufactured from a profiled strip that is coiled spirally so that it interlocks.

good flexibility
high mechanical strength
free from vibrations

Learn more about Stripwoud Hoses

Product Overview Sanitary Hoses from Witzenmann

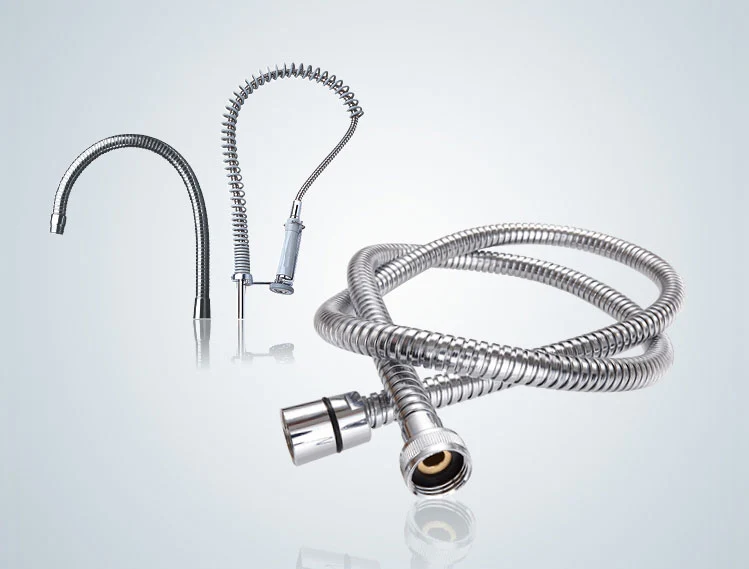

HYDRA® Sanitary Hoses

Diverse product range for kitchen and bathroom applications

continuous trouble-free use
high flexibility with maximum robustness
worldwide drinking water approvals

Learn more about Sanitary Hoses

Flexperte Design Software for pipe supports Witzenmann

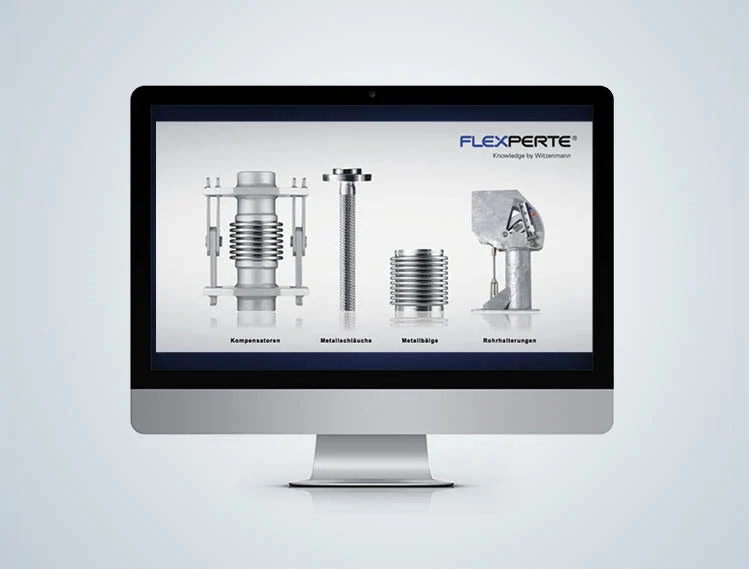

FLEXPERTE - The Design Software

Specially designed for designers, "FLEXPERTE" is a PC software application for dimensioning and presenting expansion joints, metal bellows, flexible metal hoses and pipe supports. The menu-based application aids in the calculation and design of these products.

intuitive operation
tailor-made design even of complex load chains
Rohr2, CAESAR II, AVEVA PDMS/E3D and Intergraph Smart3D for Plant- interfaces

Directly to product configuration

Next steps

Downloads

Operating and installation instructions for HYDRA® metal hose assemblies

Product overview HYDRA® metal hoses

Metal Hose Manual

Enquiry specification for metal hoses in accordance with pressure equipment directive 2014/68/EU

Enquiry form for hose assemblies

All downloads

Configure product

Configure products for your individual needs quickly and easily with our FLEXPERTE tool.

Details:

Designing of Standard Products
Preparation of Technical Data Sheets
Preparation of Enquiries

Start configuration

Download: FLEXPERTE customer version

FLEXPERTE: The design programme for the entire product range of the Witzenmann Group with a function-specific classification

Flexible metal hoses
Expansion joints
Metal bellows
Bearings, hangers, supports

Apart from the calculation formulas, drawing data as well as entire 3D CAD drawings are stored. Provided with PDS and PDMS interfaces, the program can be used multifacetedly and universally.
